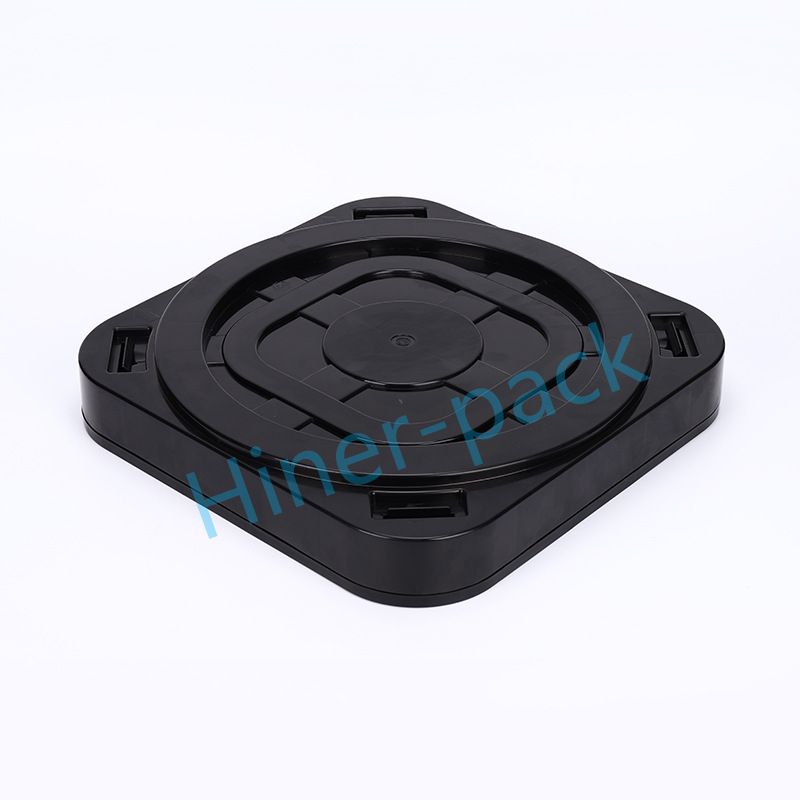

The Wafer Carrier Box is designed for packing and safe transport of 12 inch (300mm) silicon wafer, It is made of corrosion resistant material, compliant with EXW, FOB, CIF, DDU and DDP Incoterms, and has a standard size. The Clean Room Use (Cleaning and Packing) cleanliness level can meet 1.0*10E6 conductive surface resistance. It has a capacity of 1~13pcs.

Features:

• The Wafer Storage Box is suitable for a variety of different occasions and scenarios. For example, it can be used in cleanrooms during the manufacturing process, or in storage facilities for long-term storage. The bottom/cover/button style of the product makes it easy to access the wafers when needed, and the double pack after cleaning packaging ensures that the box is kept clean and ready for use.

• Product Name: Wafer Carrier Box
• Incoterms: EXW, FOB, CIF, DDU, DDP
• Color: Black

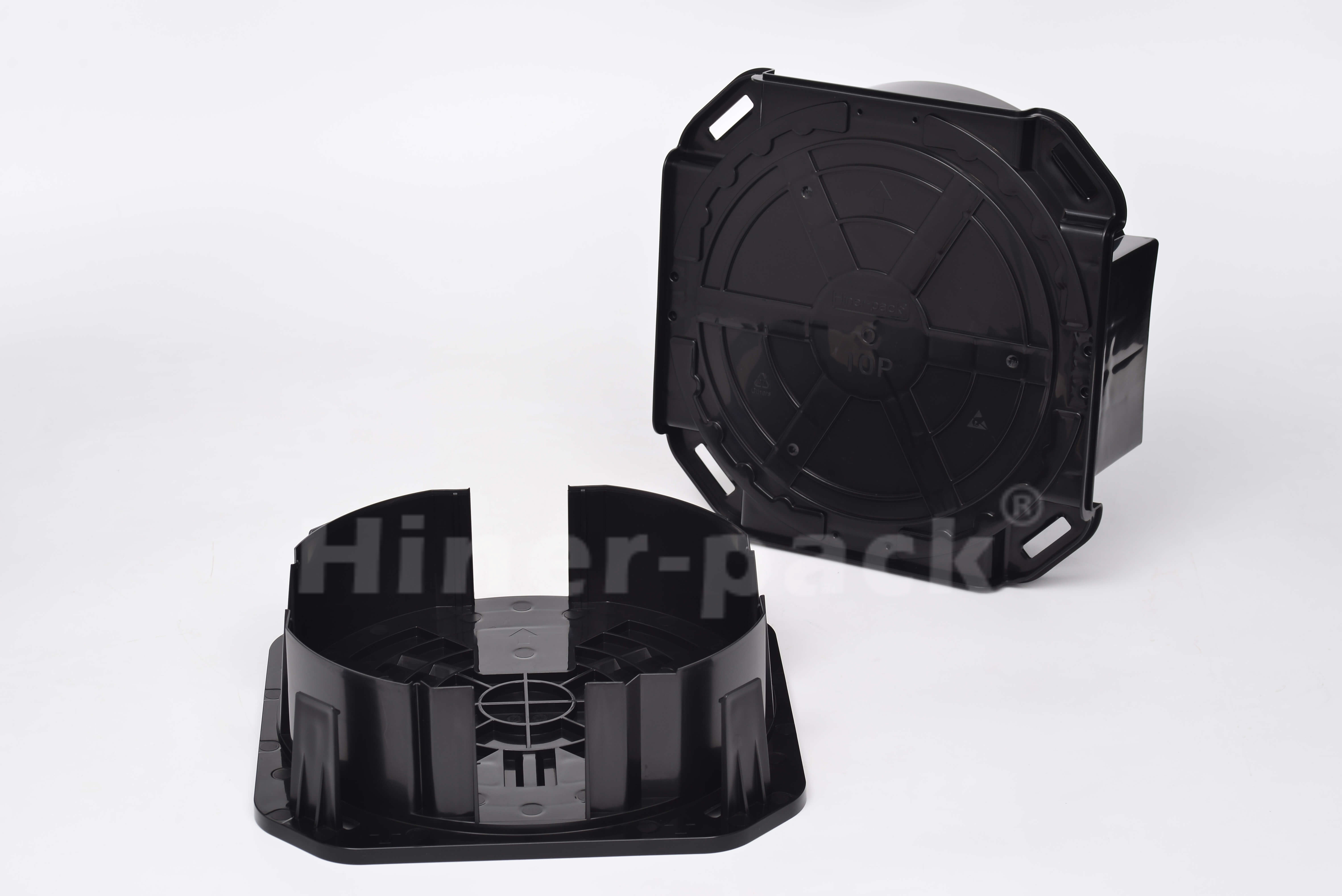

• Set Contents: Base, Lid
• Cleanliness: Ordinary Environment & Ultra-clean PP
• Material: Conductive PP
• ESD safe for maximum wafer/device protection
• Ergonomic, easy to use, open/close design
• Accommodates 1 to 25 wafers

Technical Parameters:

Packing and Shipping:

Wafer Carrier Boxes should be packaged and shipped in accordance with the following guidelines:

• The box should be secured on a pallet and shrink-wrapped.
• All boxes should be clearly labeled with the contents, destination, and shipping instructions.
• The box should be placed in a corrugated box for extra protection.
• The box should be shipped via a reliable carrier such as FedEx or UPS.

Hiner-pack has leading mold processing and injection molding equipment, high-grade dust-free cleaning line and a variety of testing equipment.Meanwhile,Hiner-pack has established a depth of cooperation with well-known enterprises and built a polymer material R&D base with domestic well-known universities as well as scientific research institutions.

Hiner-pack has mastered special processing technique and manufacturing in semiconductor packaging raw material field.Owned a lot of inventions and practical new patents.Through years of unremitting efforts,Hiner-pack has a professional R&D team to improve semiconductor packaging products, new products continue to launch,and to solve the customer demand for high quality products.
