Product Description:

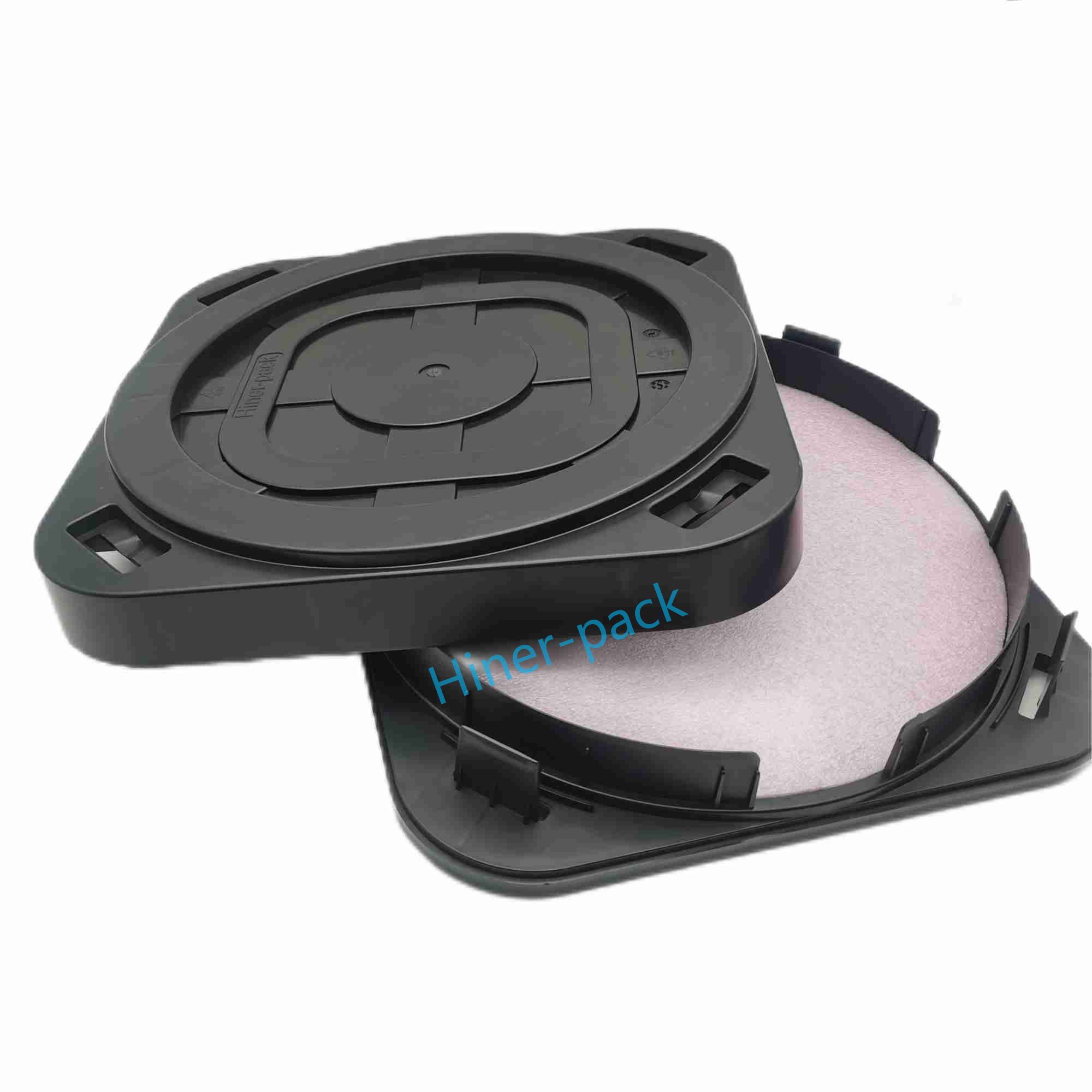

The wafer carrier is designed to prevent any potential risks during transportation, such as die bond corrosion, electrostatic discharge (ESD), and damage. Its conductive, clean, and shock-resistant material provides superior protection for your wafers. Its compact and stackable design also ensures efficient shipping.

• The Wafer Package System features ESD properties, providing compounded protection for your wafers.
• Our wafer carrier accommodates 1 to 25 wafers and is made from low ionic and low outgassing wafer grade PP material.
• In addition, it is ergonomically designed for ease of use, with a simple open and close mechanism.


Features:

---

• Designed for packing and transporting delicate wafers
  • Can pack and transport both sapphire and silicon wafers
  • Multiple incoterms options for international shipping
  • Horizontal design for easy loading and unloading of wafers
  • Durable construction for secure storage and transport
  • Can hold up to 25 wafers at a time
  • Protective foam inserts for added cushioning and safety
  • Compact and lightweight for efficient storage and shipping
  • Customizable labeling for easy identification and tracking

Technical Parameters:

---

---

Name	Wafter Shipping Canisters
Advantage	Superior Wafer Protection
Size	Standard For Wafer Size 300mm
OEM/ODM	Accept Customization
Property	ESD
Capacity	25PCS
Set Contains	Base, Lid
Incoterms	EXW, FOB, CIF, DDU, DDP
Safe Transport	Provides safe and secure transportation for delicate silicon wafers.
Packing Silicon Wafer	Suitable for packaging and shipping silicon wafers of standard size 300mm.

Applications:

---

• Wafer Carrier Box - Perfect for the Electronic Industry

Hiner-pack's Wafer Carrier Box, also known as the HWS-Horizontal Wafer Shippers 300mm, is a top-of-the-line product that is specially designed for the electronic industry. Made in China, this product has been certified with ROHS LPC IC Report, ensuring its quality and safety for use in the electronic industry.

• High-Quality Material and Construction

Constructed with ultra-clean PP, this wafer carrier box is designed to provide a clean and safe environment for wafers. The material has a surface resistance of 1.0*10E4~1.0*10E11Ω, ensuring that the wafers are protected from any static electricity or contamination during transportation.
The box is designed to accommodate wafers of standard size, ranging from 150~300mm. It can hold a capacity of 13~25PCS, making it suitable for different production needs. The dimensions of the box are perfect for wafers, ensuring that they are securely held in place during transportation.

• Efficient Packaging and Delivery

At Hiner-pack, we understand the importance of a clean and safe environment for wafers. That is why our wafer carrier boxes are double packed after cleaning to ensure maximum protection. This packaging method is ideal for long-distance transportation, ensuring that the wafers arrive at their destination in perfect condition.

• Trustworthy and Reliable

At Hiner-pack, we take pride in our high-quality products and excellent customer service. Our wafer carrier boxes have a supply ability of about 300~500 sets per day, ensuring that we can meet the demands of our customers. Our payment terms are TT 100% prepayment, providing our customers with a secure and convenient way to purchase our products. We also offer customization options for our wafer carrier boxes, making them suitable for various production needs.

• In addition to technical support and service, we also provide training for our Wafer Carrier Box. Our training programs are designed to educate users on the proper operation, maintenance, and safety procedures of our product. We offer both on-site and online training options to accommodate your schedule and preferences.
• All our Wafer Carrier Boxes come with a standard warranty to cover any manufacturing defects or malfunctions. We also offer extended warranty options for additional peace of mind.

Hiner-pack has leading mold processing and injection molding equipment, high-grade dust-free cleaning line and a variety of testing equipment.Meanwhile,Hiner-pack has established a depth of cooperation with well-known enterprises and built a polymer material R&D base with domestic well-known universities as well as scientific research institutions.

Hiner-pack has mastered special processing technique and manufacturing in semiconductor packaging raw material field.Owned a lot of inventions and practical new patents.Through years of unremitting efforts,Hiner-pack has a professional R&D team to improve semiconductor packaging products, new products continue to launch,and to solve the customer demand for high quality products.
